10 + Useful Mechanical Engineering and Manufacturing Wall Charts
In an engineering or manufacturing facility it is always useful to reference information or charts in a readily accessible format. Opening a phone or moving to a conference room simply to look at and discuss a chart that should be displayed is a waste of time and can be fixed by simply displaying a large poster wall chart for all employees on a shop/factory floor or in an office.
Below are a grouping of useful reference charts and resources for displaying.
Geometric Dimensioning and Tolerancing
About
Engineering drawings are full of geometric dimensioning and tolerancing symbols. Keep all the symbol reference information with you on a durable stainless steel engraved card. Compare symbols on engineering drawings side-by-side.
Front - GD&T feature symbols
Back - GD&T feature symbols, tolerance modifiers, and labeled elements of a GD&T symbol
Portable GD&T reference chart
Durable for workbench use
Product Specifications
Size: 3.50” x 2.00” — Fits wallets, card holders, etc.
Material: Stainless Steel
Chemically etched symbols and characters
2 colors to differentiate labels
Custom Engraving
Custom engrave your company logo, phone number, email address, website address, etc. Purchase this option along with a minimum order of 50 units of a single card.
Send all artwork and requested locations to omniamfg@gmail.com
Note: Bulk and custom engraving orders may take up to 4 weeks to ship.
GD&T information is probably the most important reference material for mechanical engineers and manufacturers who deal with parts and assemblies with tight tolerances. As engineering and manufacturing becomes more frequently outsourced to multiple partners, keeping track of and fully understanding the requirements of GD&T constrained parts becomes more relevant. If you or your company work with tight tolerances, it can be useful to display accessible GD&T charts for reference.

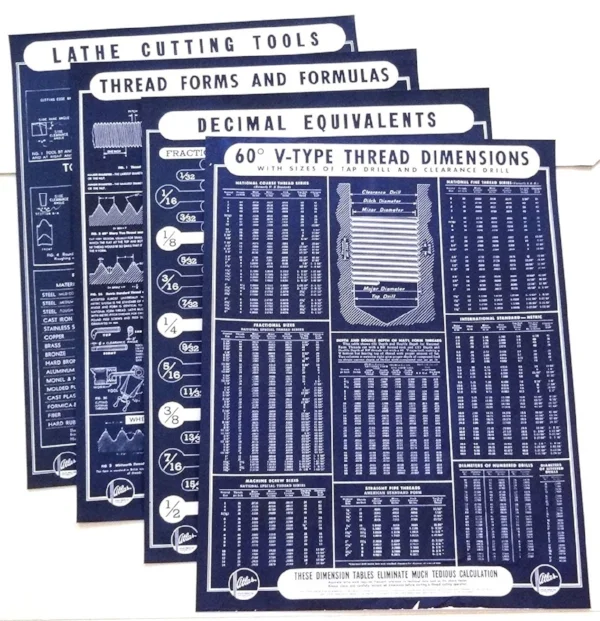

Tooling and Machining
About
Never be away from your wall mounted drill & tap chart. Keep the information with you on a durable stainless steel engraved card.
Front - 0 - 80 tap to 1/4 - 28 tap
Back - 5/16 - 18 tap to 1 1/8 - 7 tap
Portable drill & tap chart
Durable for workbench use
Drill size, decimal equivalent, and tap
All general tap sizes from 0 - 80 to 1 1/8 - 7
Product Specifications
Size: 3.50" x 2.00" -- Fits wallets, card holders, etc.
Material: Stainless Steel
Chemically etched symbols and characters
Custom Engraving
Custom engrave your company logo, phone number, email address, website address, etc. Purchase this option along with a minimum order of 50 units of a single card.
Send all artwork and requested locations to omniamfg@gmail.com
Note: Bulk and custom engraving orders may take up to 4 weeks to ship.
6. Grainger Reference Charts
Grainger Engineering Tech Wall Charts
Grainger Fastener Tech Wall Charts
On to a more broadly practical topic – tooling and machining information and conversion charts are always handy to keep around. Many engineers carry this information as pocket reference packets or cards so they don’t have to constantly be opening their phone to retrieve this reference information. In a more static environment, like an office or a manufacturing shop, it can be useful to post larger charts on the wall so all personnel can share the same points of reference.

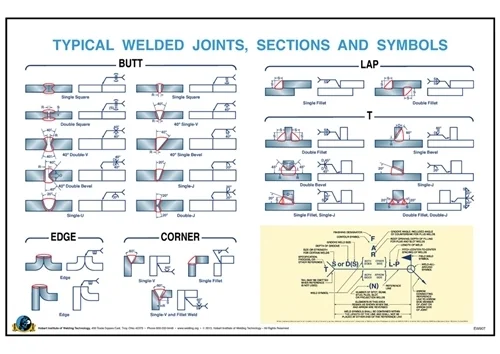

Welding Joints and Symbols
About
Engineers, drafters, welders, and anyone who works with engineering drawings has searched for weld symbol reference information. Keep the information in your wallet at all times on a durable stainless steel engraved card. Compare symbols on engineering drawings side-by-side with the weld symbol reference card.
Front - Welding symbols
Back - Labeled elements of a welding symbol
Portable welding reference chart
Durable for workbench use
Product Specifications
Size: 3.50" x 2.00" -- Fits wallets, card holders, etc.
Material: Stainless Steel
Chemically etched symbols and characters
2 colors to differentiate labels
Custom Engraving
Custom engrave your company logo, phone number, email address, website address, etc. Purchase this option along with a minimum order of 50 units of a single card.
Send all artwork and requested locations to omniamfg@gmail.com
Note: Bulk and custom engraving orders may take up to 4 weeks to ship.
If you work with welding in the design or manufacturing side of engineering, it can be very useful to post a larger reference chart showcasing weld joints and weld symbols for everyone to see. Far too often while speaking with colleagues or personnel on the shop floor, information about welding is forgotten or simply unknown. Being able to stand by a chart and show or reference information as a group is much easier than gathering around a phone or in a conference room.
Hardness Conversions
9. Wilson Hardness Conversion Chart
Useful in manufacturing and multiple forms of engineering, a hardness conversion chart can save some unnecessary research time. This chart is downloadable and allows for easy conversion reference of hardness values between the Rockwell scales and Brinell scales.
Psychrometric Chart
10. Trane – Psychrometric Chart
11. Wall Part – Full Size Psychrometric Chart Print Poster
Admittedly, I have never had a use for these charts in my line of work, but colleagues do use them on a regular basis. If you work with products that are sensitive to air and environmental properties, it may be useful to have quick access to a psychrometric chart for back-of-the napkin estimates.
Misc.
12. UNM – Nuclear Engineering Wall Charts
Jarrett Linowes
Mechanical Engineer
omniamfg@gmail.com
Did I miss anything you are interested in? Send me an email or comment below!
